08-14 NNBS GM Truck Tubular Control Arms Set
08-14 NNBS GM Truck Tubular Control Arms Set

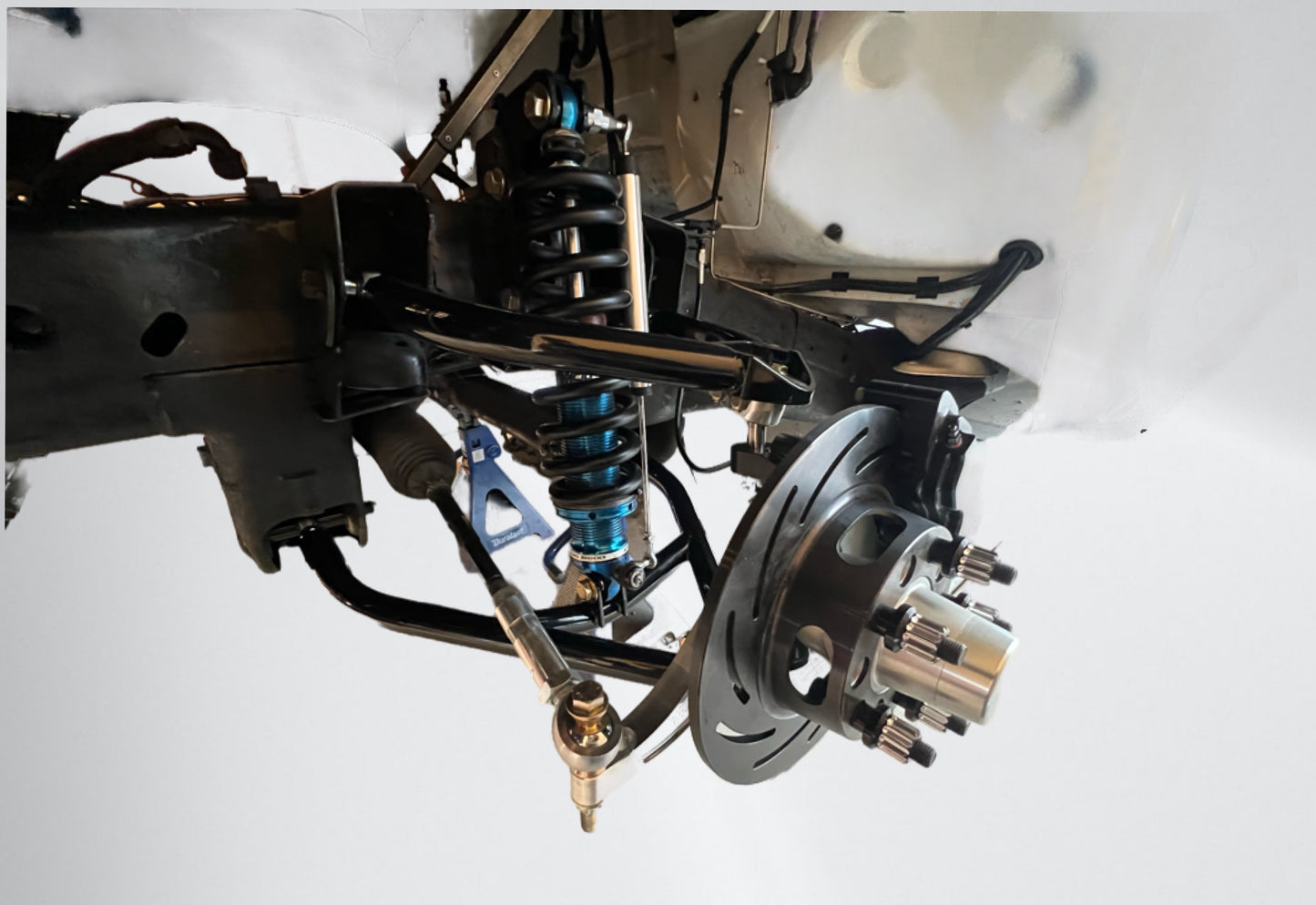

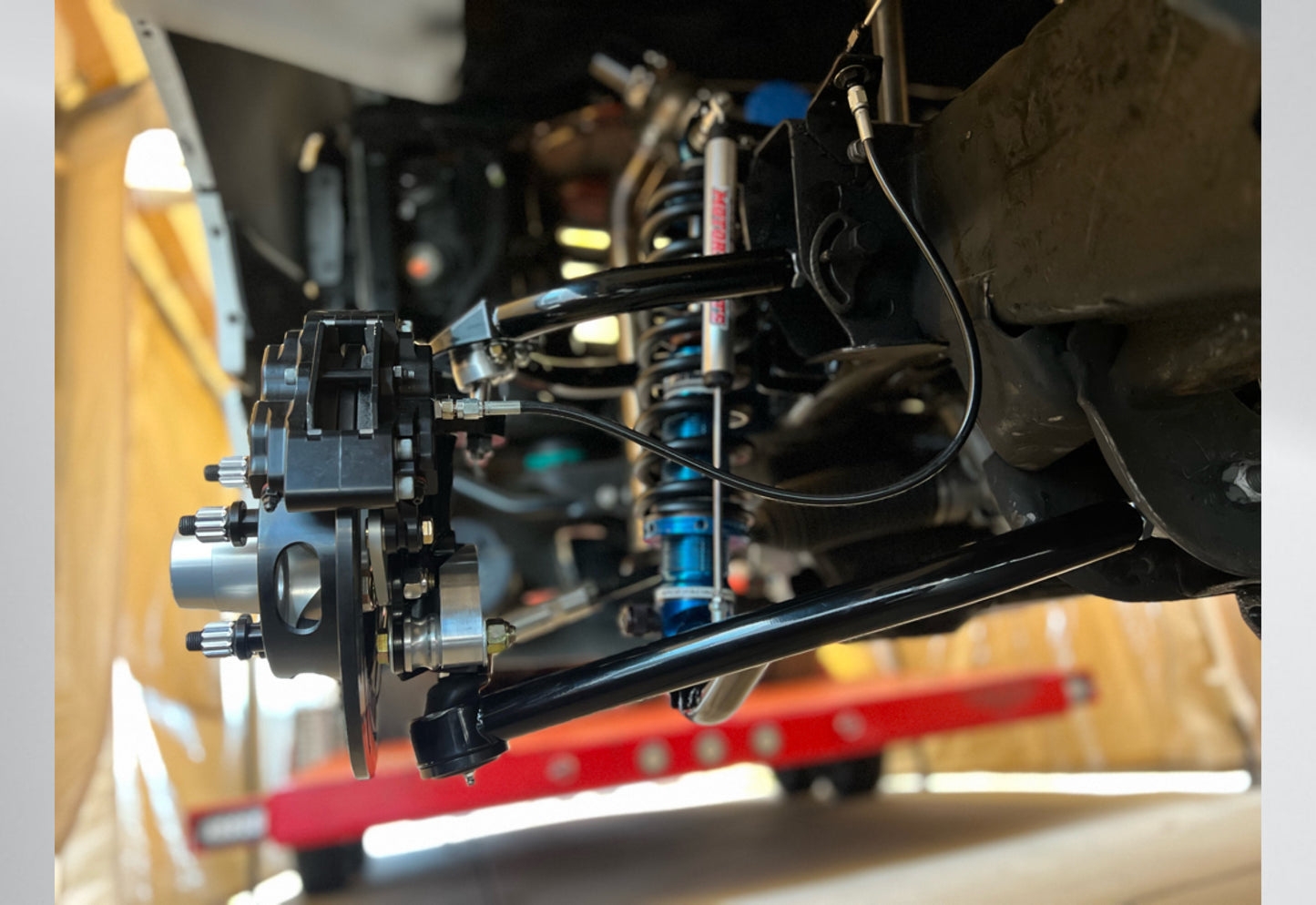

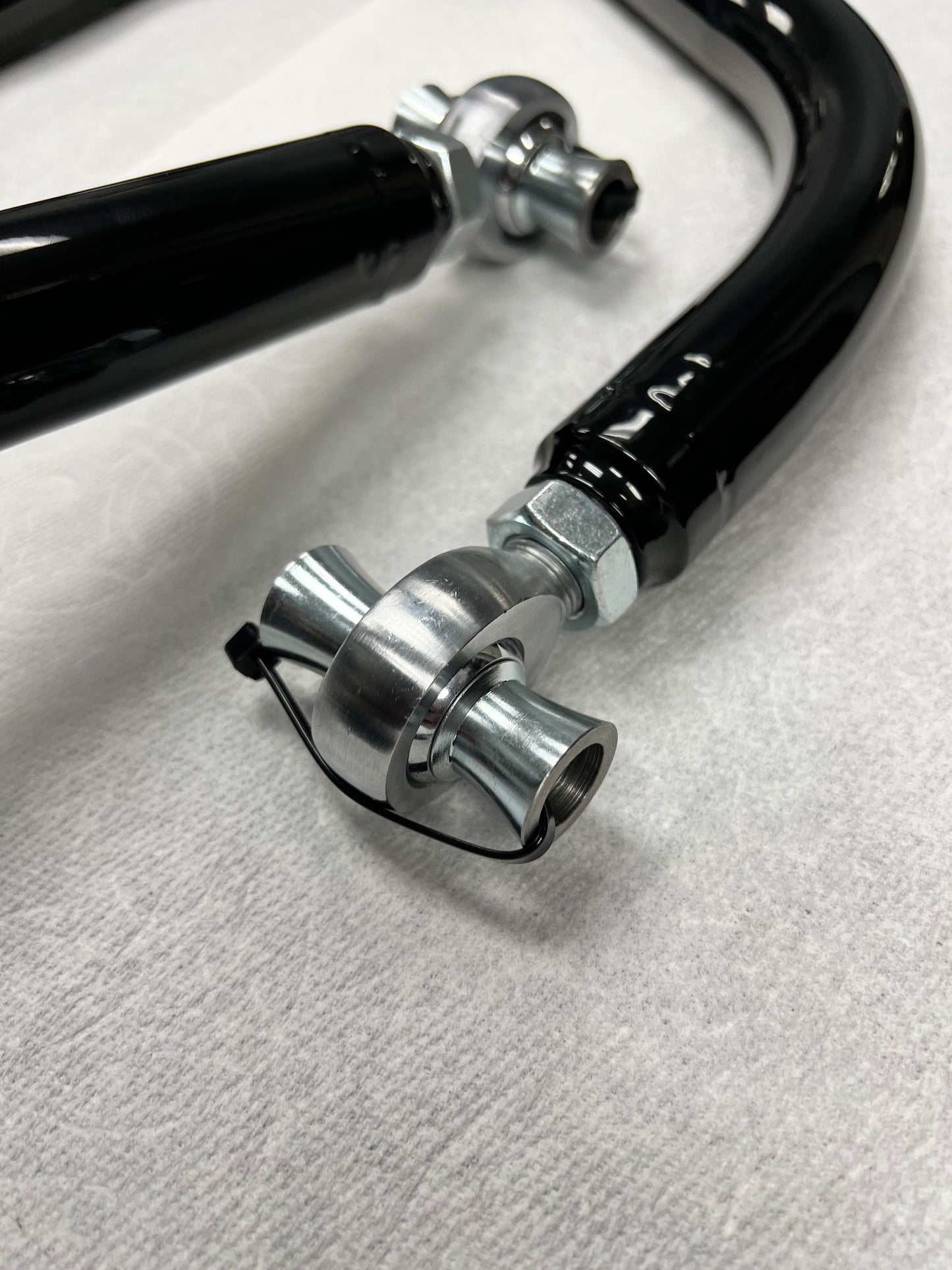

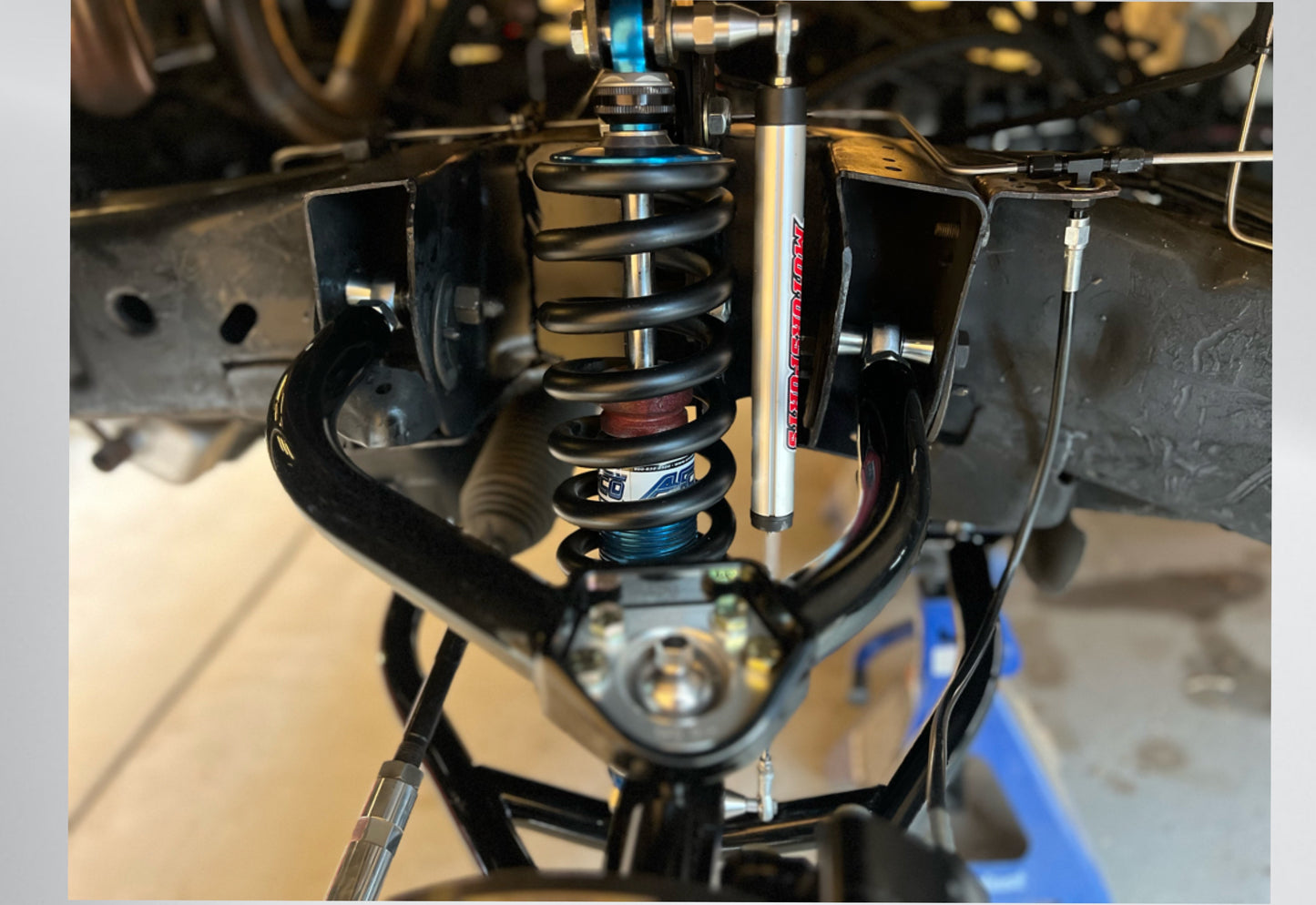

We built these control arms with one goal in mind, and that is to make a product that is lightweight and structurally sound, they are built using 4130 chrome-moly tubing, fully tig welded, using high quality rod ends for camber adjustability. These control arms are built to be used with s10/g-body spindles, light weight race brakes, and Coil overs (QA1, Viking,AFCO,etc.)will need an upper coilover mounting adapter bracket. Pictured are TRZ motorsports 2" drop spindles with lightweight Strange Engineering brakes. You will also gain an extra 1.5" drop and not to mention around 130 lbs. weight savings from your stock control arm/brake set up to this kit.
Allow 2-3 weeks build time.
Features:
-Powder coated High Gloss Black
-Upper control arm weigh 4.5lbs each
-lower control arm weigh 6.60lbs each
-Stock camber plates will be used along with stock bolts for uppers.
-Lowers will use spacers with stock bolt (spacers provided with kit).
-Mevotech (blue boot) lower ball joint pair
-Mevotech (blue boot) Upper ball joint pair (unless ordered with billet ball joints)
NOTE:
will not work with stock spindles or 4x4 trucks.
